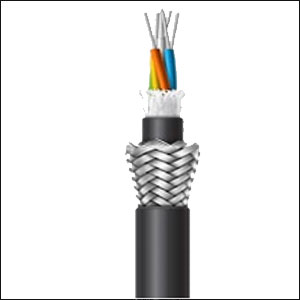

Braided Cables

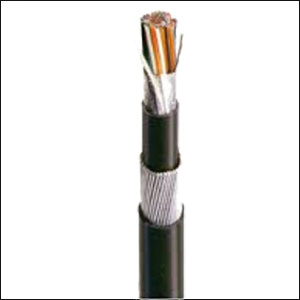

Shielded Cables

Instrumentation / Signal (Screened – Shielded & Braided) Cables

Performance Standards - BS 5308 pt-1 & 2, VDE0815, 0816 as per customer/ Copper Braided or SS braided (Stainless Steel ) Requirements.

Size ranges - 0.5/0.75/1.0/1.5/2.5 mm2 up to 61 cores & 24 pairs (unarmoured or armoured or annealed or tinned copper braided or stainless steel braided (SS braided)

Voltage Grades - 300/450/500/600/1100volts

Application
Instruments connection, computers, smooth data transmission in measuring & process control system, restricts signals loss, Quick Sensing, improve security systems, effectively cut the cross communication & noise. This is Suitable for fixed installation in dry & humid premises.

Fire Alarming Cables

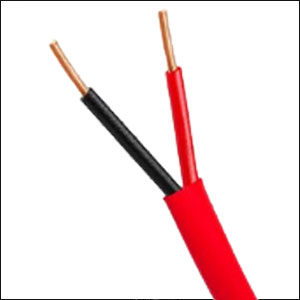

Fire Alarming Cables

Description - FAS (fire alarming systems) cables are very sensitive to pass the signals without delay to sensors of with quick fire alarming of smoke & fire detectors tools & emergency communication systems.

Performance Standards -FAS Specification - BS 5308 pt1 &2/ IS 8130/5831/1554 /IEC 60228, 60332

Size Ranges - 0.5/0.75/1.0/1.5/2.5 mm2 up to 61 cores & 24 pairs

Voltages Grades - 300/450/500/600/1100volts

Application - Building Automation Systems cables uses in Multiplexes, Malls, High Rise Buildings, Towers rendering overall control, connectivity, alarm, security, sound, water sprinklers, CCTV cameras, Access Control, AP system (Power Amplifiers) & Building Management systems (IBMS) total solutions.

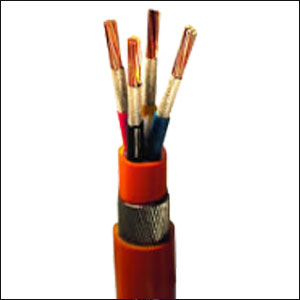

Fire Survival Circuit Integrity Cables

Fire Survival (Circuit Integrity) Cables

Description - Are specially designed to sustain the high temperature heat barriers to withstand 650°C, 750°C, & 950°C for 2 & 3 hours duration.

Performance Standards - BBS 6387:1984/IEC

Size Ranges - 0.5/0.75/1.0/1.5/2.5MM2up 37 cores & 12 pairs

Voltages Grades - 300/500/600/1000 volt

Fire Barrier - High temperature sustain tape

Advantages

  • A Circuit integrity shall be continue under fire at high temperature
  • Enhanced current carrying capacity due to high permissible conductor tempts
  • Higher short circuit capacity
  • Lighter in weight hence easy to handles & installation
  • Reluctant to overheating
  • High oxygen index-refrains (ceases)
  • High degree of light transmission in the event of fire
  • Low smoke density reduces the environmental opaqueness during fire
  • No chances to emission of Halogen Gases –safe for humans
  • Negligible emission of toxic & corrosive gases –diminishing the chances to damage the human body/sensitive equipment
  • PH 120

Application:Airport, Shopping Malls, Hotels , Refineries ,High Rise Buildings, Metro Rails, Cinema ( Theaters), Stadium, Hospital, Nuclear Power Plants, Industries, Hospitals, Railways, Oils , Petro-Chemicals etc.

Flexible Cables

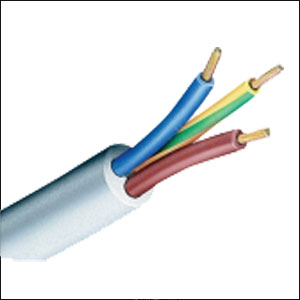

Flexible cables

Performance Standards - IS 694:1990/ IS: 2465 /BS 6004:2012

Size Ranges - 0.5/0.75/1.0/1.5/2.5MM2up 61 cores

Voltages Grades - 300/500/600/750/1000 volt

Application:Useful - Domestic & Industrial Purposes - Suitable for fixed wiring, flexible operation & for use on AC single phase systems for rated voltage up to & including 750 volts & DC systems for rated voltage up to & including 1100 volts to earth.

Co Co-axial Cables

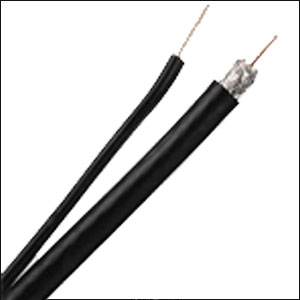

Co-axial Cables

Description - Digital VSAT satellite telecom & Radio frequency co-axial cables, RG (radio guide) 6/59/58/11/213/8Auetc.

One advantage of co-axial - Electromagnetic field carrying the signals exist only in the space between the inner & outer conductors. Co-axial cables also provide protection of the signals from external electromagnetic interferences. Co-axial cables can differ from other shielded cables used for carrying lower signals, such as audio, signals.

Application

  • Specially used in electronic & digital instrument wiring
  • CCTV & Audio Visual VSAT/DATA cabling recorder
  • Multi-location network or surfacing
  • Used for high frequency system for transmission & reception
  • Due to low attenuation values thus providing better & clear picture
  • Moisture does not seep into the cable
  • TV cables provides high bandwidth & ensures quality signals transmission, thus enabling reception of more channels than other cables
  • Reduce the number of amplifiers means lower the installation cost etc.

Special Features

  • 1.High bandwidth
  • 2.Low attenuation value
  • 3.Minimum structural return loss
  • Low loss in signal quality
  • Ideal power pass application
  • Clear in reception& reduced cross talk

Thermocouple

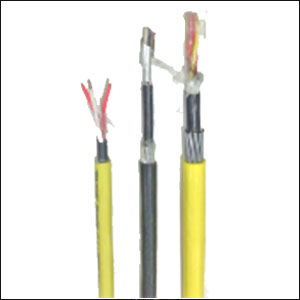

Thermocouple ( Compensating & Extension Cable )

Description - Utilizing dissimilar metallic conductors than that of the thermocouple but having similar emf. (Electro Motive Force).

Performance Standards - IS: 8784, BS 4937, IEC-584, ANSI MC96.1, DIN, JIS standards, IEC60332.

Construction

  • Conductor: Made of different metal composition to provide Positive (+) & Negative (-) core to match the component of those in the term of couple elements
  • Voltage Grade:300/450/600/1100V
  • Cable code:KX,KX(A),TX,JX( EXT),EX,SX/RX,BX,NX,UX,WX
  • Pairs:Single or Multi Pairs
  • Size Range: AWG/16/18/20/22/24 up to 24 pairs or 0.5, 0.75, 1.0, 1.5 sqmm

Lan Cables

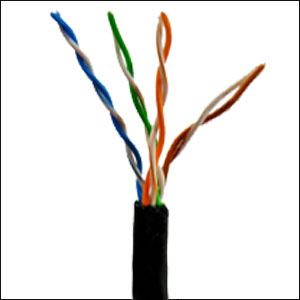

Lan Cables (Cat-5 & 6)

Description - Unshielded twisted pair (UTP)/Shielded (STP) twisted pair-100 MHz& 500 MHz

Performance Standards - TIA/EIA 568 C

Advantage

  • Most suitable for voice, data, video, low voltage control, Horizontal &Vertical distribution Plenum & Riser
  • Uses - This category 5& 6 (4 pair) cables is a high speed, high performance, 100 Ohm impedance cables capable of carrying high bit rate signaling for extended distance in horizontal cabling. Signal amplifiers are not required for a length of 328 feet (100M)

Application

  • 1.Fast networking speed
  • 2.High bit rates over extended distance

Control Power Cables

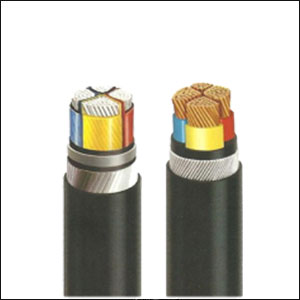

Control & Power Cables XLPE & PVC

Performance Standards IS 1554/7098pt.1 & 2,8130,5831,3975, BS -5467 & IEC 60502

Size Ranges 1.5 to 400 Sqmm both Aluminium & Copper

Voltage grades up to 1100 Volts

XLPE -Technical Advantages :-

  • Higher current ratings, higher short circuit ratings, approx.- 1.2 times that of PVC
  • Thermosetting in nature
  • Higher insulation resistance ,1000 times more than PVC cables
  • Higher resistance to moisture
  • Better resistance to surge current
  • Low dielectric losses g) Better resistance to chemicals
  • Longer service life
  • Comparatively higher cable operations tempt. 90° C & short circuit tempt. 250° C

Commercial Advantages:-

  • Lower laying cost due lighter weight
  • Lower installation charges due to smaller bending radius
  • One size lower cable can be used as compared to PVC insulated cable.

Application:-

  • Industrial Segment
  • Power Supply & Distribution Systems
  • Chemical Segment
  • Shipping Ports Segment
  • Airlines Ports
  • Pharmaceutical Segment
  • Refineries, etc

Auto Cables

Auto Cables

Description These cables are used as original equipment for wiring automobiles & in the auto harness & useful to resists to water, oil & acids etc.


Battery Cables

Description Harnesses soldered/crimped for ready use automobile manufacture

  • Technical Data -15°C to +70°C tempt.
  • PERFORMANCE STANDARDS -IS – 2465/1984
  • SIZE RANGES – 0.5 to 240 sqmm

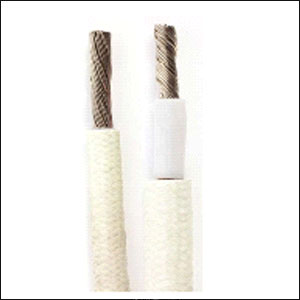

Uny-nyvin Cables

Uny-nyvin Cables

Performance Standards BSG-1771961, Kirloskar KSD

Single core Annealed Tinned Copper Conductor, HR PVC insulation & Nylon Sheath or Braided with Nylon Lacquer, Uny-navin Cables.

ApplicationThese cables are used for Air Crafts wiring, panels of UPS systems with Permissible temperature – up to 105°C

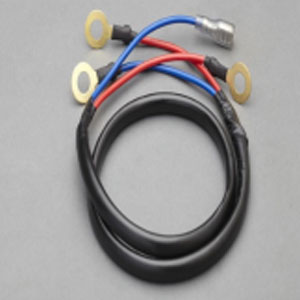

Harness Wires

Harness Wires/Cables

Application Automotive/Aerospace/Motors / Railway – Provide several advantages

  • Loose wires entangle firmly gripped
  • Required less space
  • Easy identification of system
  • Exponentially less time required to repair, maintain & replace
  • compact & intelligent workmanship
  • Non flexing bundles engaged in one group
  • Decrease the risk of short-circuits
  • Standardization whole process leads to less or eliminated errors.
  • Secured against adverse effect of vibration, abrasion & moisture etc.
